Product Description
The diamond segment induction brazing machine is a device that uses induction brazing technology to connect diamond segments to a tool. Diamond segments are key components in various cutting tools, such as diamond saw blades and grinding wheels, and are commonly used in construction and manufacturing.
The machine uses induction heating, a process that uses a high-frequency electromagnetic field to heat the diamond segment and the tool base. Induction brazing ensures precise control of the heating process, resulting in a strong and reliable bond between the diamond segment and the tool. This method is favored for its efficiency and ability to produce consistent, high-quality welds.
Induction brazing machines in Diamond Segments typically consist of a power supply, induction coil and cooling system. The power supply generates a high frequency current, and the induction coil directs this energy to a specific area that needs to be heated. The cooling system helps keep the temperature of the equipment under optimal operating conditions.
This technology has the advantages of faster heating cycle, lower energy consumption, and minimum deformation or damage to the diamond segment and tool base. Overall, diamond step induction brazing welders play a vital role in improving the performance and durability of diamond tools used in cutting and grinding applications.
Parameters
|
Model |
SGP-30KVA |
|||
|
Output Oscillating Current |
300-1500A |
|||
|
Power Supply Voltage |
Three-phase 380v50hz |
|||
|
Vibration Frequency |
20-60KHZ |
|||
|
Input Voltage Range |
320-420v |
|||
|
N.W. |
35kg |
|||
|
Input Power |
30KVA |
|||
|
Volume |
600mm*270mm*510mm |
|||
|
Cooling Water Pressure |
0.03-0.05Mpa |
|||
|
Load Rate |
≤100% |
|||
Main Features & Applications
Main Features:
1. High power design, low failure rate, durable and long-lasting.

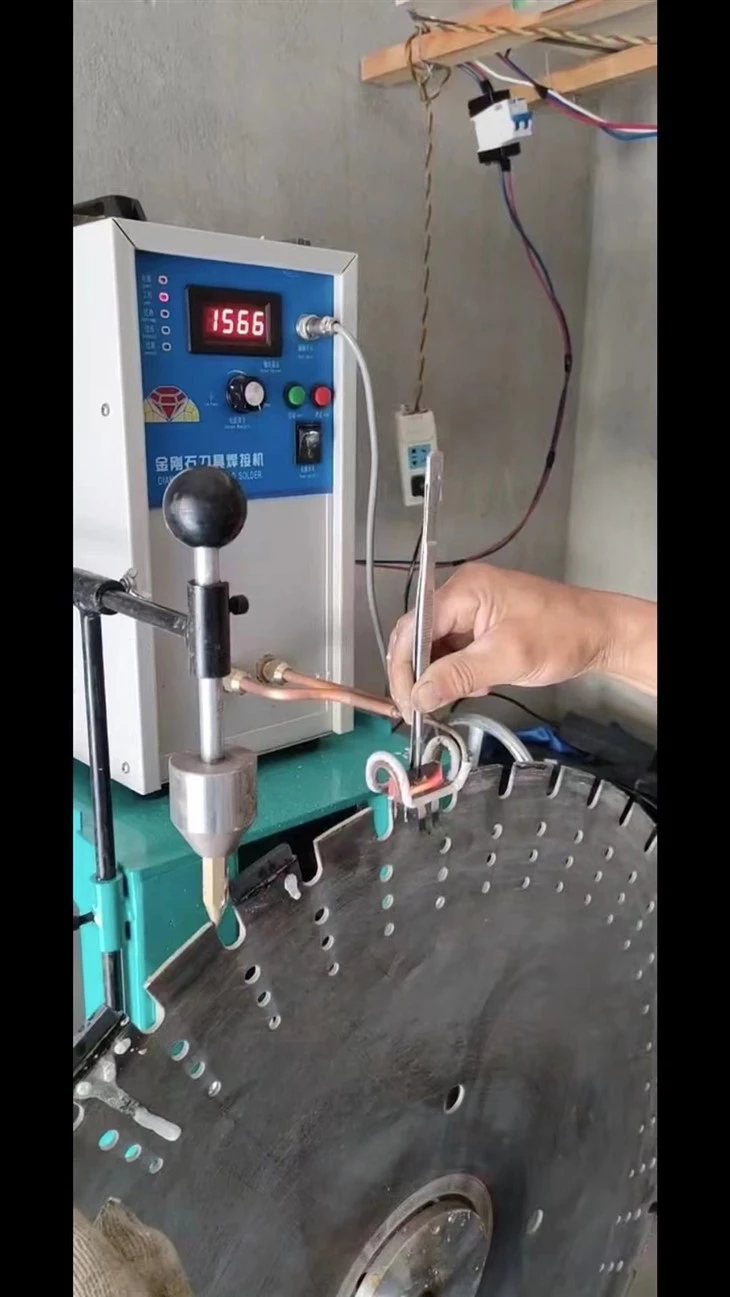

2. Fast heating speed, mainly for welding diamond roller blades, grinding wheels, and floor grinding segments.
3. Load sustainability: 24-hour continuous operation at maximum power.
4. Easy to install, can be used by connecting water and electricity, no need for professional personnel to install.
Applications:
Diamond Segments Induction Brazing Welding Machine is widely used in the diamond tool industry, and the following are its main application scenarios.
Related Accessaries

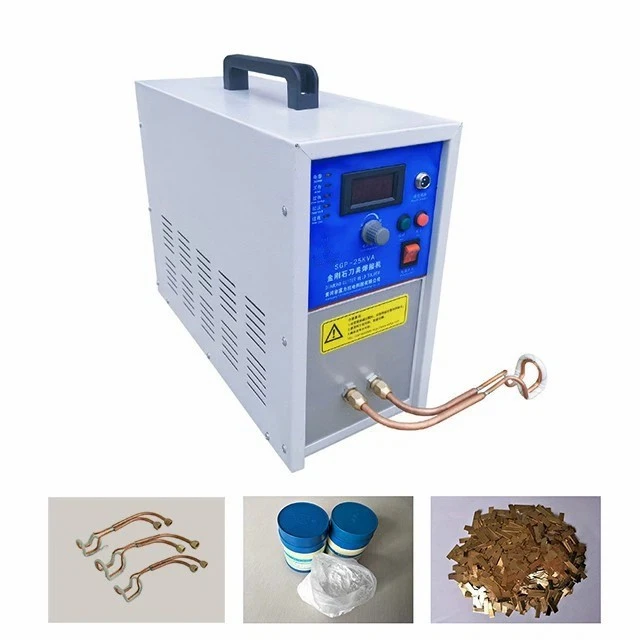

The welding machine is used with induction coils, foot switches and welding materials.
FAQ
Q: Does your product have warranty service?
A: We offer our customers a lifetime repair service and the warranty period is one year.
Q: What's the list of certificates you hold?
A: CE, FCC, GCC, PSE, KC, CCC...
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 piece.
Q: Is it all right to make customer's own brand?
A: We can create the customer's brand based on their requirements.
Q: What kind of files do you accept?
A: Based on the customer's customs clearance situation, we can accept all files.
